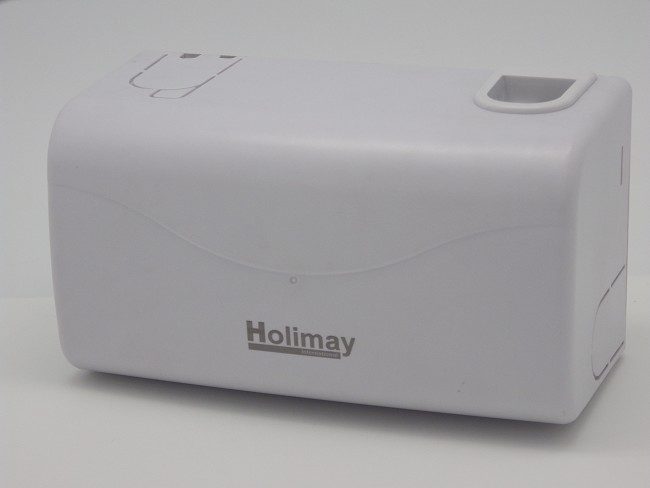

PI PUMP

data：2018-03-03 18:01 source：holimay

Specification

Model	PI-30225B&PI-30226B

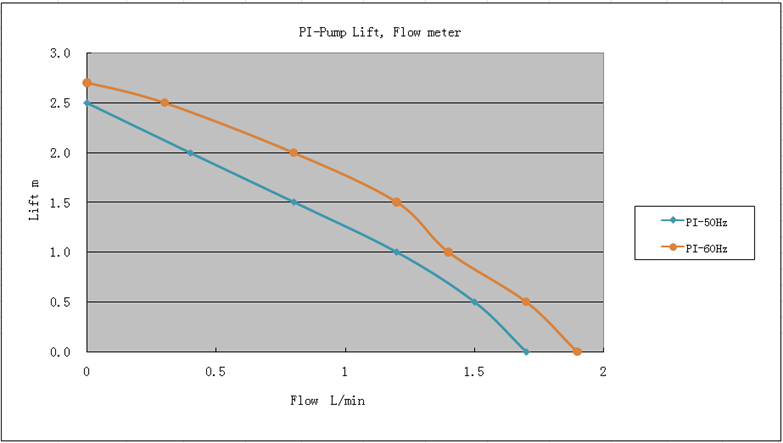

Max Lift	2.5m(50Hz)/2.7m(60Hz)
Max Flow	1.7L/min(50Hz),1.9L/min(60Hz)
Outlet tube size	Φ4xΦ6mm
Use Air conditioner	Wall hanging
Dimension	200x100x110mm

Characteristic

1 . adopt low speed and high torque motor with extremely low noise

2 . easy to install, multiple inlet options
3 . the use of fire-resistant materials, fire rating of UL94V-0
4 . Check the water with the check valve to prevent the backflow of
water in the drain pipe
5 . suitable for a wide range of wall hanging, fan coil units, ceiling
embedded air-conditioning
